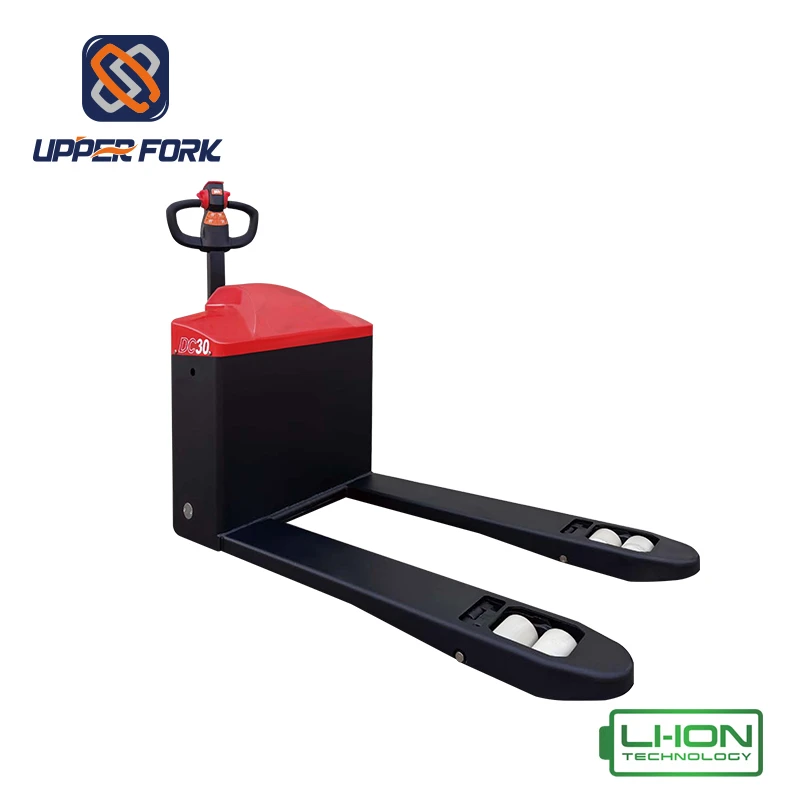

3-Ton Electric Pedestrian Pallet Truck
Capacity:3000KG
Net Weight:336/360KG
Battery Capacity:48V/30AH 48V/65AH(Optional)
Product Introduction
3-Ton Electric Pedestrian Pallet Truck: Heavy-Duty Stable and Versatile for Complex Working Conditions
This 3-ton electric pedestrian pallet truck, with its core focus on "heavy-duty efficiency and all-terrain adaptability," breaks the limitations of conventional handling equipment. It boasts the robust strength of a 3-ton load capacity while its simple and agile design allows for flexible maneuvering in narrow spaces. It's the ideal handling equipment for complex scenarios such as large warehouses, logistics centers, construction sites, and cold storage facilities, easily solving the dual challenges of heavy-duty and confined-space operations.
Performance is fully optimized. The entire vehicle features a compact and lightweight design, making it small and agile with a minimal turning radius. It can move freely in narrow areas such as supermarket back-offices, workshop workstations, and small material yards on construction sites, without occupying excessive operating space, significantly improving space utilization. The core features 300mm large-diameter off-road wheels paired with nylon load-bearing wheels, which are wear-resistant, non-slip, and have strong grip, easily handling complex road conditions such as potholes and gravel areas. Its outstanding off-road durability completely eliminates the problem of getting stuck on bumps.
Seamlessly integrating safety and control, the machine comes standard with an emergency stop switch and an emergency reverse safety device, enabling rapid power cut-off and mitigation of crushing risks in emergencies, providing comprehensive protection for operator safety. The built-in charger eliminates the need for additional equipment, allowing for convenient recharging anytime, anywhere without disrupting work progress. The multi-functional handle integrates a key switch, an upright walking button, and a high-definition LCD screen, displaying battery level, working time, and fault information in real time for intuitive and clear operation. Optional features include a combination lock and a slow-speed function, further enhancing operational safety and low-speed operation accuracy.
Details contribute to its durable quality. The machine body uses a high-strength metal shell, resistant to impact and wear, effectively extending the machine's lifespan. The fully sealed design provides excellent dustproof, moisture-proof, and low-temperature resistance, ensuring stable operation even in complex environments such as cold storage temperatures and dusty construction sites, offering excellent maneuverability. The machine is easy to operate, requiring no complex training for beginners. Balancing heavy-duty capacity with convenient operation, it is an efficient choice for handling 3-ton loads..
|
Features |
|||
|
Model |
CBD30-170HA |
||
|
Operating type |
Pedestrian |
||
|
Load capacity |
kg |
300 |
|
|
Load center |
mm |
600 |
|
|
Wheel base |
mm |
1380 |
|
|
Wheels |
|||
|
Wheels type |
Driving:Rubber Bearing:Nylon |
||
|
Wheel quantity Driving wheel/Balance wheel/Bearing wheel |
1X+0/4 |
||
|
Driving wheel size |
mm |
Φ300x110 |
|
|
Bearing wheel size |
mm |
Φ84x80 |
|
|
Dimensions |
|||
|
Min.fork lowered height |
mm |
85 |
|
|
Max.fork lifting height |
mm |
205 |
|
|
Max.lifting height |
mm |
120 |
|
|
Outside width between forks |
mm |
560/685 |
|
|
Fork length |
mm |
1150/1200 |
|
|
Fork width |
mm |
170 |
|
|
Fork thickness |
mm |
75 |
|
|
Overall length |
mm |
1723/1773 |
|
|
Overall width |
mm |
697 |
|
|
Overall height(with handle) |
mm |
1382 |
|
|
Overall height(Without handle) |
mm |
838 |
|
|
Min.Turning radius |
mm |
1578/1628 |
|
|
Min.Aisle width for pallets 800X 1200 |
mm |
1883/1933 |
|
|
Min.Aisle width for pallets 1000X 1200 |
mm |
1911/1961 |
|
|
Performance |
|||
|
Travel speed,laden/unladen |
km/h |
3.5/4 |
|
|
Lift speed,laden/unladen |
mm/s |
17/23 |
|
|
Lowering speed,laden/unladen |
mm/s |
35/30 |
|
|
Gradeability,laden/unladen |
% |
6/16 |
|
|
Service brake type |
Electric |
||
|
Electrical configuration |
|||
|
Traction motor rating at S2 60 min |
kw |
BLDC1.8 |
|
|
Lift motor rating at S3 15% |
kw |
DC 0.8 |
|
|
Battery voltage/ capacity |
V/Ah |
48/30(VRLA) |
48/65(Optional) |
|
Charger specification |
V/A |
48/5 |
48/9 |
|
Weight |
|||
|
Battery weight(±5%) |
kg |
9×4 |
15×4 |
|
Service weight with battery |
kg |
336 |
360 |
|
Other |
|||
|
Steering type |
Mechanical |
||
|
Drive control type |
BLDC |
||
