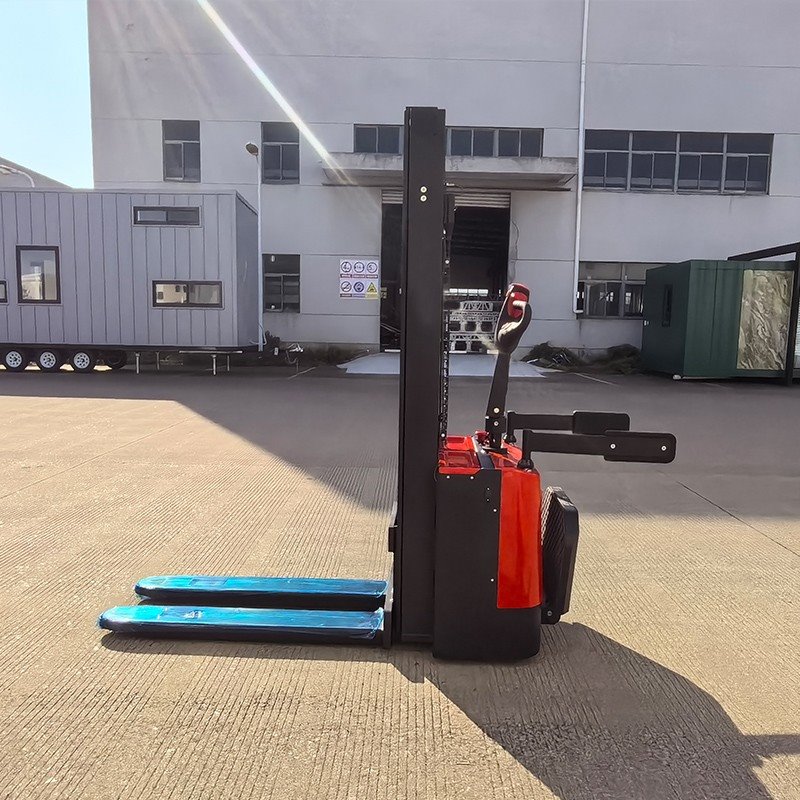

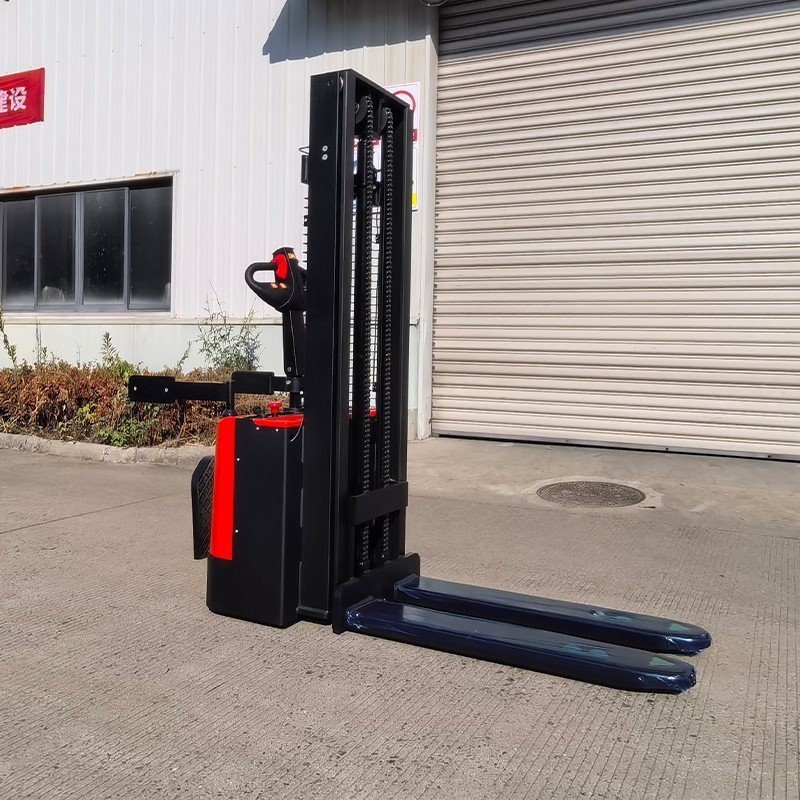

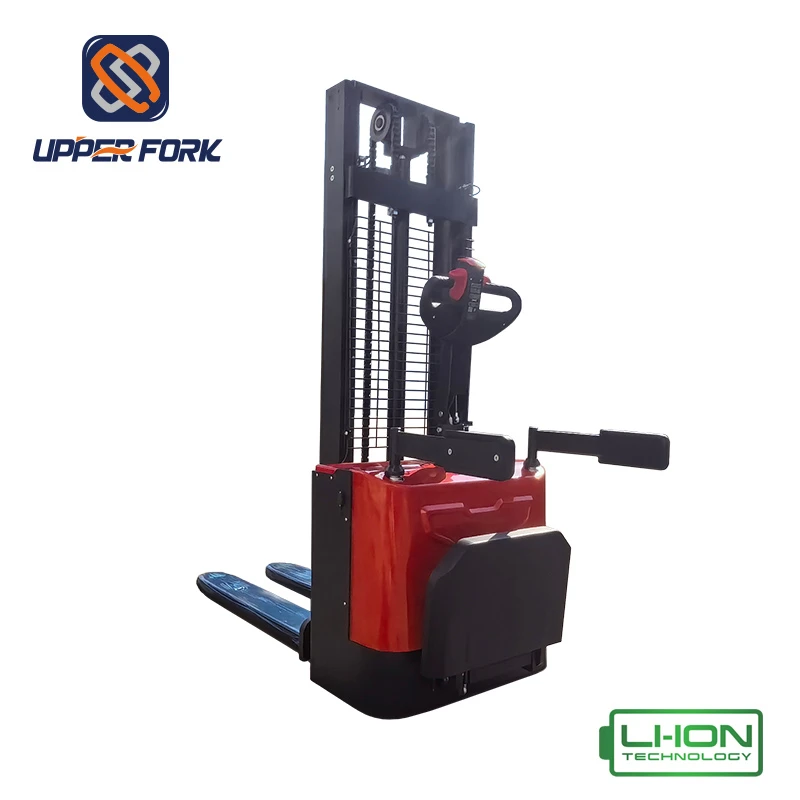

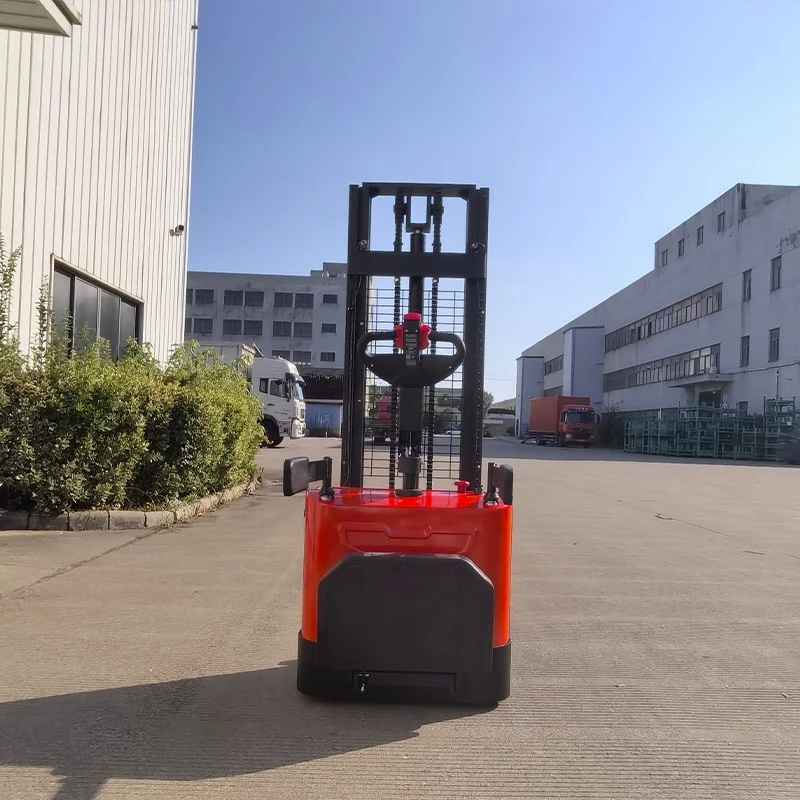

2.0T Stand-on Electric Stacker
Capacity:2000KG
Net Weight:725KG
Battery Capacity:48/65V/Ah
Product Introduction
2.0-ton Stand-on Electric Stacker Truck: Heavy-Duty, Stable, and Versatile Warehousing and Handling Tool
Focusing on the heavy-duty handling needs of small and medium-sized warehouses, logistics transfer stations, and production workshops, this 2.0-ton stand-on electric stacker truck easily solves the challenges of stacking and transferring large-tonnage goods with its stronger load capacity, stable performance, and comprehensive protection, becoming a core handling equipment for heavy-duty operations.
It features a comprehensive performance upgrade, equipped with high-strength forks for further enhanced load-bearing capacity, stably adapting to the handling of 2.0-ton loads. It boasts excellent impact and deformation resistance, remaining robust and durable even under long-term, high-frequency operation. A built-in charger is standard, providing convenient and efficient charging without the need for additional charging equipment, significantly reducing standby time and ensuring operational continuity. The core components include a **permanent magnet brushless drive motor (BLDC1.2)** and a lifting motor (DC1.2). The permanent magnet brushless design eliminates the hassle of carbon brush replacement, reducing maintenance costs. Simultaneously, the high-power drive provides robust power for lifting and traveling, ensuring smooth operation even under full load, far exceeding the efficiency of traditional equipment. Equipped with automatic lifting limit switches and long-life limit switches, it precisely controls height while protecting core components, extending the overall machine's lifespan.
Safety features are comprehensive, including a standard emergency switch and emergency reverse safety device for rapid response in emergencies, eliminating safety hazards. The centrally located mechanical steering provides precise and stable steering, comfortable handling, and fatigue-free operation even during extended periods. Standard features also include a safety arm and folding pedals, optimizing the operating experience and enhancing operational safety. Weighing only 725kg, the machine's reasonable center of gravity distribution ensures stable and undisturbed travel, making it suitable for various heavy-duty handling conditions. Simple and easy to operate, it balances heavy-duty performance with ease of use, helping businesses efficiently complete various medium-to-heavy-duty warehouse handling tasks, reducing costs and increasing efficiency with greater peace of mind.
|
Features |
||
|
Model |
CDD20-TF |
|
|
Operating type |
Stand on |
|
|
Load capacity |
kg |
2000 |
|
Load center |
mm |
600 |
|
Wheel base |
mm |
1145 |
|
Wheels |
||
|
Wheels type |
PU |
|
|
Wheel quantity Driving wheel/Balance wheel/Bearing wheel |
1/2/4 |
|
|
Driving wheelsize |
mm |
ɸ195×70 |
|
Balance wheel size |
mm |
ɸ116×55 |
|
Bearing wheel size |
mm |
ɸ73×60 |
|
Dimensions |
||
|
Standard lift height |
mm |
3000/3500/4000 |
|
Max extend height |
mm |
3472/3972/4472 |
|
Mast lowered height |
mm |
2012/2262/2512 |
|
Min.fork lowered height |
mm |
80 |
|
Outside width between forks |
mm |
550/600/650/685 |
|
Inside width between forks |
mm |
180/230/280/315 |
|
Fork size(length/width/thickness) |
mm |
1150/185/60 |
|
Overall length |
mm |
2214/1812 |
|
Overall width |
mm |
780 |
|
Min. Turning radius |
mm |
1393 |
|
Min.Aisle width for pallets 800X1200 |
mm |
2224 |
|
Min.Aisle width for pallets 1000X1200 |
mm |
2291 |
|
Performance |
||
|
Travel speed,laden/unladen |
km/h |
4.2/5 |
|
Lift speed,laden/unladen |
mm/s |
105/175 |
|
Lowering_speed,laden/unladen |
mm/s |
115/110 |
|
Gradeability,laden/unladen |
% |
6/10 |
|
Electrical configuration |
||
|
Drive motor/Lift motor |
BLDC1.2/DC1.2 |
|
|
Battery voltage/capacity |
V/Ah |
48/65 |
|
Charger specification |
V/Ah |
48/8 |
|
Controller |
HELI |
|
|
Brake |
Electromagnetic/Regenerative |
|
|
Weight |
||
|
Battery weight |
kg |
15×4 |
|
Service weight (with battery) |
kg |
725 |
|
Other |
||
|
Steering type |
Mechanical |
|
