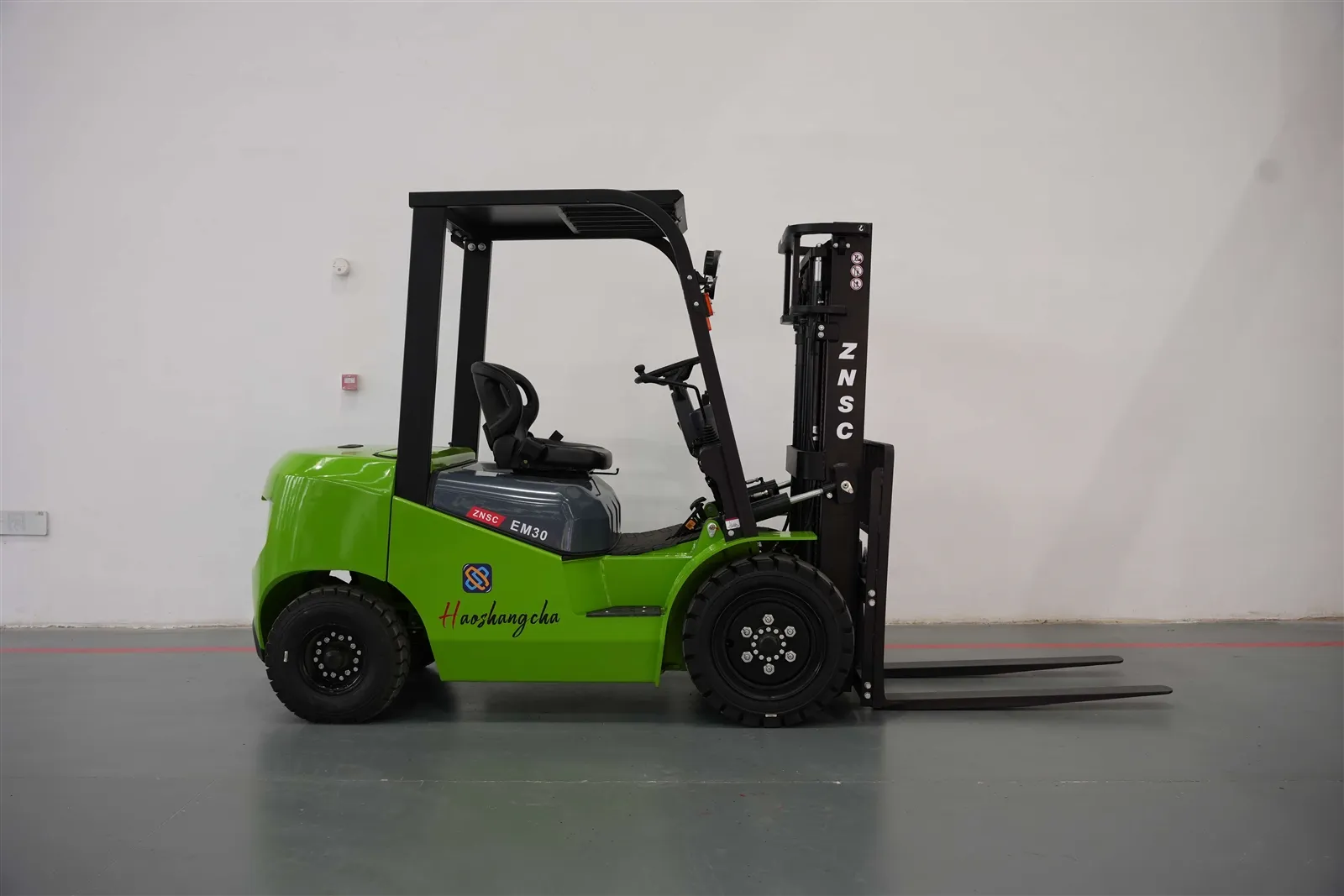

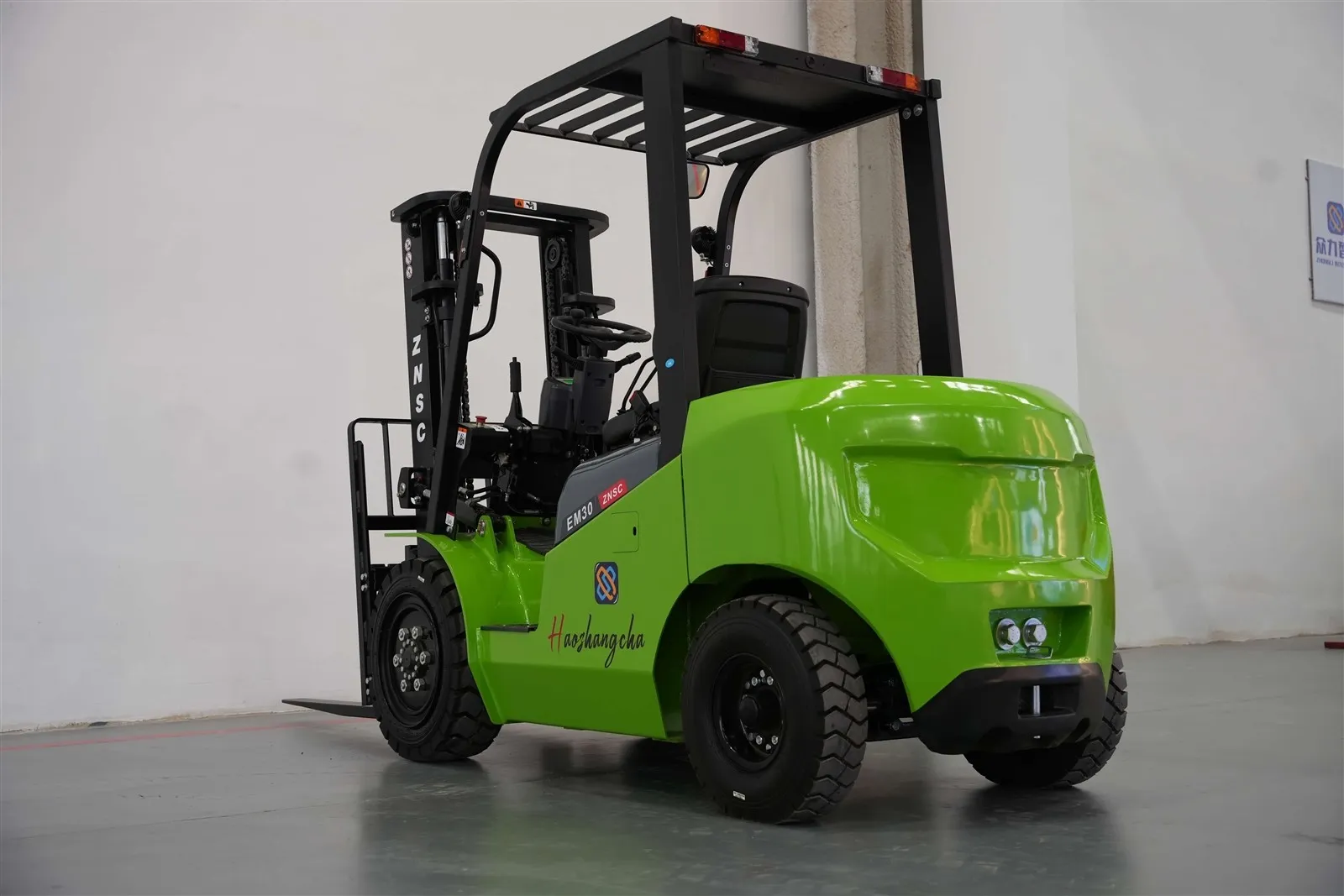

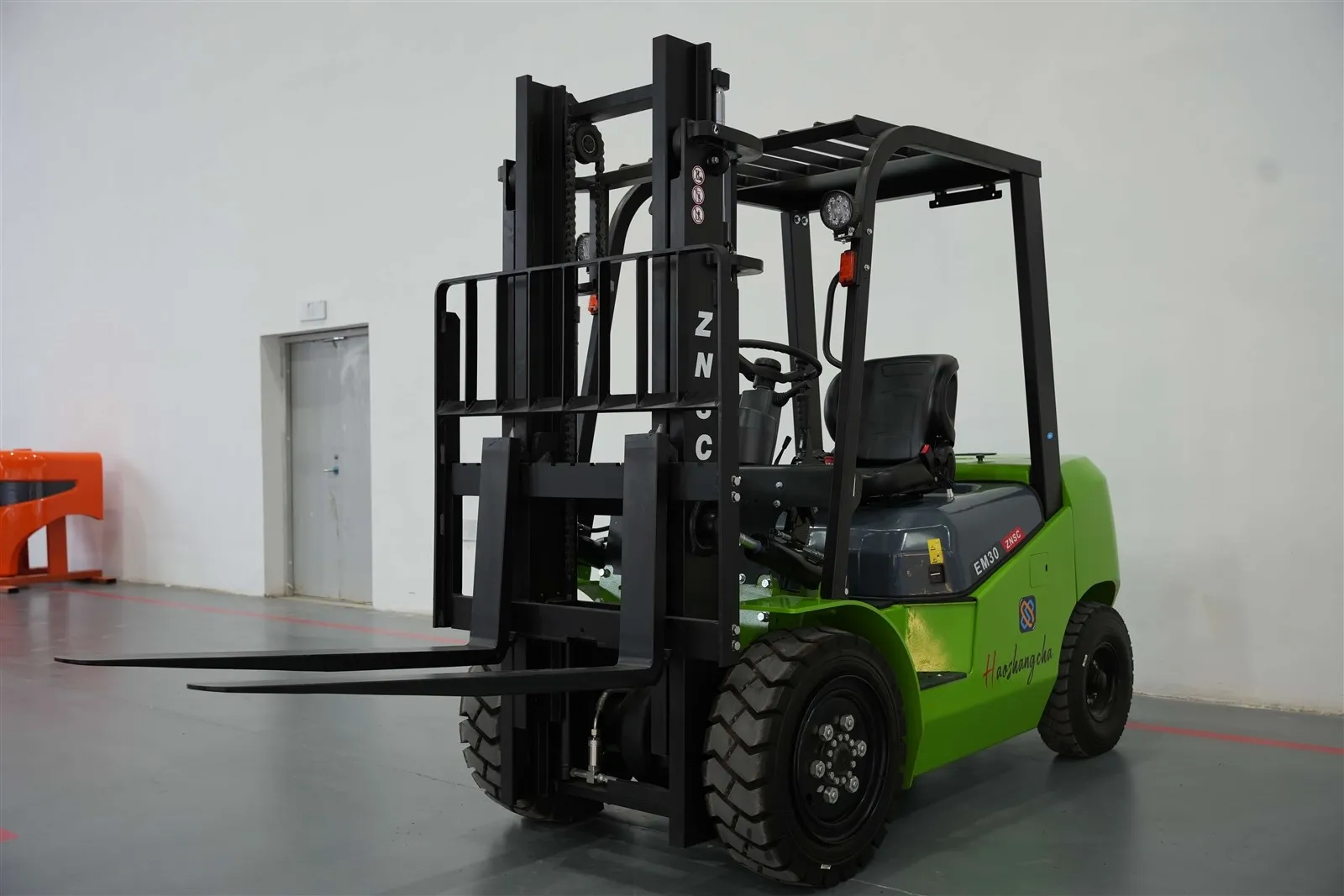

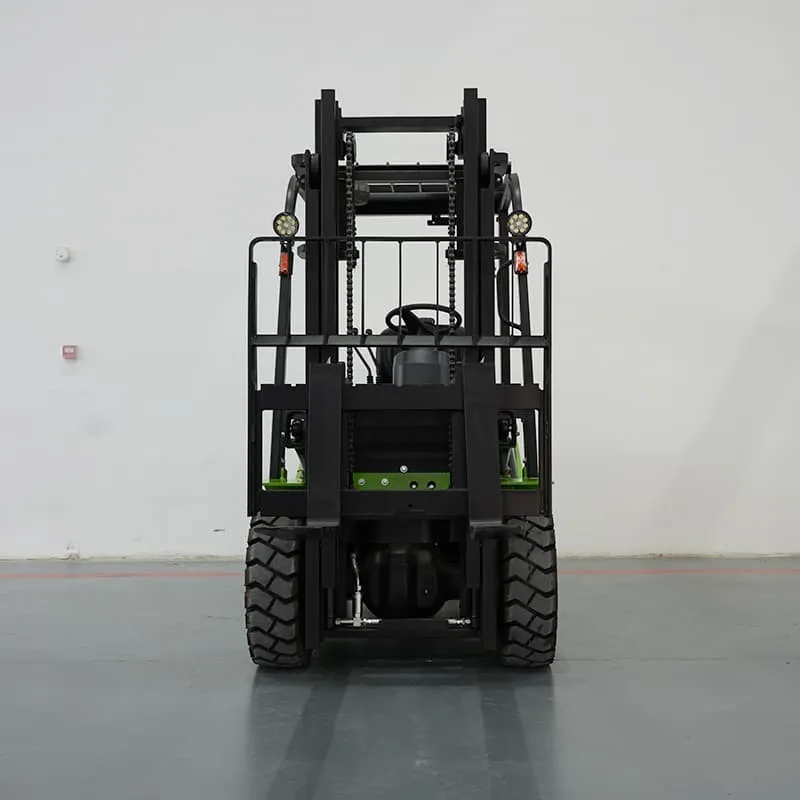

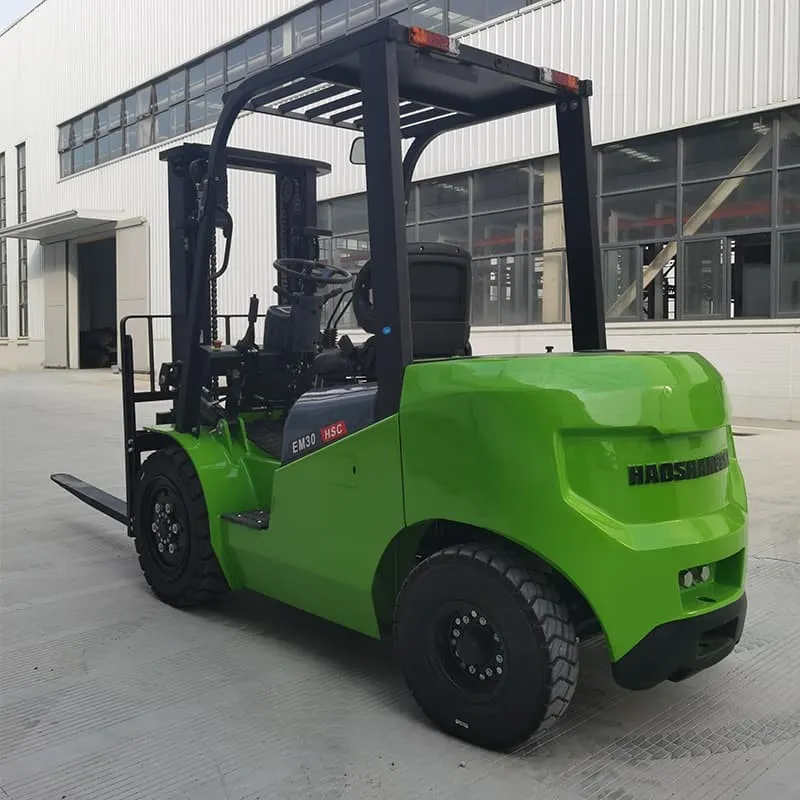

3.5T Li-ion Forklift

Lifting Capacity：3500KG
Total Weight：4400KG
Lithium Battery：80V/205AH～450AH
Warranty Time：8 Years

Send Inquiry

Download

Product Introduction

Fast Charging and Low Maintenance: Perfect for Logistics and Warehouse Needs with Li-ion Forklift

In the fast-paced world of logistics and warehousing, efficiency, reliability, and minimal downtime are crucial to meeting daily operational demands. The Li-ion Forklift stands out as the ideal solution for these industries, offering unparalleled battery performance, a maintenance-free design, and the ability to adapt seamlessly to various environments. Its advanced technology reduces downtime and enhances operational efficiency, making it a must-have for modern logistics and warehouse operations.

The most remarkable feature of the Li-ion Forklift is its cutting-edge lithium battery technology. Unlike traditional lead-acid batteries, lithium batteries provide rapid charging capabilities. This means the forklift can be fully charged in a fraction of the time, allowing operations to continue with minimal interruption. For busy warehouses and logistics centers that require equipment to operate around the clock, the fast charging feature of the Li-ion Forklift is invaluable, ensuring maximum uptime and productivity.

In addition to its fast charging capabilities, the Li-ion Forklift boasts a maintenance-free design. Traditional forklifts often require extensive upkeep, including frequent watering and equalization of lead-acid batteries. The lithium battery in the Li-ion Forklift eliminates these requirements, significantly reducing labor and maintenance costs. This feature is especially beneficial for logistics companies and warehouse operators, as it allows them to focus more on core operations without worrying about equipment maintenance.

The Li-ion Forklift also delivers exceptional performance in diverse environments. Its powerful battery ensures consistent and reliable operation, even during demanding tasks like heavy lifting and long-distance transportation. Its ergonomic design and counterbalanced structure enable smooth maneuvering in tight spaces, making it a versatile choice for warehouses with limited room or complex layouts.

Furthermore, the Li-ion Forklift supports sustainable business practices. As a zero-emission vehicle, it helps reduce the environmental footprint of logistics and warehouse operations. Choosing this forklift not only enhances operational efficiency but also aligns with the growing focus on green solutions in the industry.

In conclusion, the Li-ion Forklift is a game-changing asset for the logistics and warehouse sectors. With its fast charging, maintenance-free design, and superior performance, it reduces downtime and increases efficiency, making it the perfect choice for businesses aiming to optimize their operations and embrace sustainable practices.

General
Manufacturer		SHANGCHA
Model		CPD35
Power Type		Lithium battery
Rated Load Capacity	kg	3500
Load Centre	mm	500
Characteristic & Dimension
Rated Lift Height	mm	3000
Free Lift Height	mm	145
Mast Tilt Angle (F/R, a°/β°)	°	6°/10°
Travel Speed (Full Load/No Load)	km/h	12.5/14
Lifting Speed (Full Load/No Load)	mm/s	280/400
Max.Gradeability(No Load/Full Load)	%	20/15
Turning Radius	mm	2520
Total weight	kg	4400
Wheelbase	mm	1760
Fork Size (LxWxT)	mm	1070×125×50
Fork Overhang	mm	480
Rear Overhang	mm	560
Length to Face of Fork (Without Fork)	mm	2800
Overall Width	mm	1220
Mast Lowered Height	mm	2060
Overhead Guard Height	mm	2170
Power &Transmission
Battery	V/Ah	80/280
Drive Motor	kw	12
Lift Motor		16
Operating Pressure (For Attachments)		17.5
Controller		SANTROLL
Chassis
Tyre (Front x 2)		28×9-15-14PR
Tyre (Rear x 2)		6.50-10-10PR

MAST SPECIFICATIONS & RATED CAPACITIES
Mast Type	Mast Name	Max. Fork Height (mm)	Load Capacity (kg)				Overall Height (mm)			Free Lift (mm)		Tilt Angle (Single)	Tilt Angle(Double)	Total Weight (kg)
							Lowered	Extended		Without Backrest	With Bracket
							Lowered	Without Backrest	With Backrest	Without Backrest	With Bracket
			30	30 Front double wheels)	35	35 Front double wheels)	3.0t/3.5t			3.0t/3.5t				30	35
Wide View Mast	M270	2700	3000		3500		1920	3295	3770	145	150	6-12		4436	4751
	M300	3000	3000		3500		2070	3595	4070	145	150	6-12		4460	4775
	M330	3300	3000		3500		2220	3895	4370	145	150	6-12		4485	4800
	M350	3500	3000		3500		2320	4095	4570	145	150	6-12		4500	4825
	M370	3700	3000		3400		2420	4295	4770	145	150	6-6		4515	4840
	M400	4000	2950		3250		2620	4595	5070	145	150	6-6	*6-12	4540	4865
	M430	4300	2800		3100		2770	4895	5370	145	150	6-6	*6-12	4565	4890
	M450	4500	2600	*2900	2900	*3000	2870	5095	5570	145	150	6-6	*6-12	4580	4905
	M470	4700	2500	2800	2800	2900	2970	5295	5770	145	150	6-6	*6-12	4595	4920
	M500	5000	2200	*2550	2400	*2800	3170	5595	6070	145	150	6-6	*6-6	4630	4955
	M550	5500	2000	*2400	2200	*2600	3420	6095	6570	145	150	3-6	*3-6	4680	5005
	M600	6000	1500	*2000	1600	*2400	3670	6595	7070	145	150	3-6	*3-6	4720	5045
2-Stage Fu l l Free Wide View Mast	FM270	2700	3000		3500		1920	3240	3715	1232	757	6-12		4515	4840
	FM300	3000	3000		3500		2070	3590	4065	1382	907	6-12		4540	4865
	FM330	3300	3000		3500		2220	3940	4415	1532	1057	6-12		4565	4890
	FM350	3500	3000		3500		2320	4090	4565	1632	1157	6-12		4580	4905
	FM370	3700	3000		3500		2420	4240	4715	1732	1257	6-6		4595	4920
	FM400	4000	3000		3250	*3500	2670	4590	5065	1982	1507	6-6	*6-12	4620	4945
3-Stage Full Free Wide View Mast	TFM400	4000	3000	*3000	3000	*3500	1960	4700	5175	1272	797	6-6	*6-6	4670	4995
	TFM430	4300	2800	*2900	3000	*3350	2060	5000	5475	1372	897	6-6	*6-6	4700	5025
	TFM450	4500	2600	*2800	2800	*3200	2110	5200	5675	1422	947	6-6	*6-6	4720	5045
	TFM470	4700	2400	*2700	2500	*3000	2160	5400	5875	1472	997	6-6	*6-6	4740	5065
	TFM500	5000	2100	*2400	2300	*2800	2260	5700	6175	1572	1097	6-6	*6-6	4750	5075
	TFM550	5500	1650	*2250	1800	*2550	2460	6200	6675	1772	1297	3-6	*3-6	4800	5125
	TFM600	6000	1200	*2100	1300	*2300	2660	6700	7175	1972	1497	3-6	*3-6	4870	5195
	TFM650	6500	950	*1700	1050	*1800	2910	7200	7675	2200	1747	3-6	*3-6	5020	5345
	TFM700	7000	650	*1400	750	*1500	3110	7700	8175	2300	1947	3-6	*3-6	5070	5395
1. With Separated Side shifter , load capacity subtract 200Kg,With Integrated side shifter , load capacity subtract 50Kg.
*2. (Asterisk ) is for double front wheels model.**
