2.0T Electric Pallet Stacker
Capacity:1200KG
Net Weight:616KG
Battery Capacity:24V85Ah
Product Introduction

|
|
|
|
|

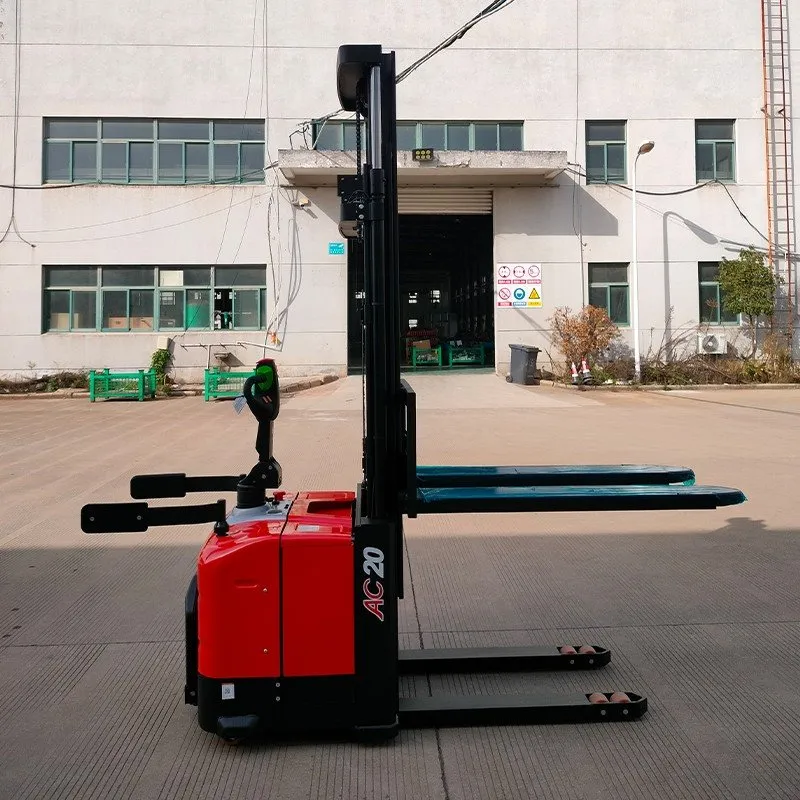

UPPERFORK CDD20 2-Ton Electric Pallet Stacker
The UPPERFORK CDD20 is a 2-ton electric pallet stacker with a rated capacity of 2,000 kg and a 600 mm load center. It comes in two models, a walkie and a stand-on, both built for medium-load stacking and short-distance transfer in warehouses, workshops, and logistics parks.
Mast and forks
The two-stage mast comes in seven lift heights from 1,400 mm to 4,000 mm, and lowers to a 90 mm fork height. Forks measure 1,150 mm (or 1,220 mm) long, 185 mm wide, and 55 mm thick.
Drive and steering
A brushless AC drive motor (1.5 kW) powers travel, a DC 3 kW motor lifts, and a BLDC 0.3 kW motor steers. Electronic power steering keeps the effort low, and a patented drive unit with a floating force-boosting mechanism keeps the truck stable. Travel speed is 6 km/h laden or unladen, lift speed is 130 mm/s laden and 180 mm/s unladen.
Battery options
The lead-acid model runs on a 24V/280Ah battery, and a lithium iron phosphate model runs on 24V/200Ah with faster charging and a longer service life. The walkie model suits confined spaces, and the stand-on model suits longer transport distances.
Safety
A dual-channel descent solenoid valve gives three descent speeds for smooth lowering. The ZAPI controller manages the drive, and the truck slows automatically on turns and when driving with the load raised. Long-life proximity switches with an automatic lift limit protect the motor and battery, and an emergency reverse and emergency brake switch stop the truck quickly.
Size and weight
The walkie model is 2,105 mm long and the stand-on model 2,525 mm, both 957 mm wide. Turning radius is 1,595 mm for the walkie and 2,010 mm for the stand-on. Service weight is 1,213 kg with the lead-acid battery and 1,077 kg with the lithium battery.
For a specification sheet or a quotation, contact UPPERFORK.
|
Features |
|||
|
Model |
CDD20 |
||
|
Configuration NO. |
D930 |
||
|
Mast type |
2-stage |
||
|
Operating type |
Waikle/Stand On |
||
|
Load capacity |
kg |
2000 |
|
|
Load center |
mm |
600 |
|
|
Wheel base |
mm |
1325 |
|
|
Wheels |
|||
|
Wheels type |
PU |
||
|
Wheel quantity Driving wheel/Balance wheel/Bearing wheel |
1/2/4 |
||
|
Driving wheelsize |
mm |
ɸ248×75 |
|
|
Balance wheel size |
mm |
ɸ115×55 |
|
|
Bearing wheel size |
mm |
ɸ84×70 |
|
|
Dimensions |
|||
|
Standard lift height |
mm |
1400/2000/2500/3000/3300/3600/4000 |
|
|
Max extend height |
mm |
1900/2500/3000/3500/3800/4100/4500 |
|
|
Mast lowered height |
mm |
1185/1535/1765/1980/2135/2335/2500 |
|
|
Free lifting height |
mm |
_ |
|
|
Lowered fork height |
mm |
90 |
|
|
Fork size(length/width/thickness) |
mm |
1150(1220)/185/55 |
|
|
Overall length |
mm |
2105/2525 |
|
|
Overall width |
mm |
957 |
|
|
Min. Turning radius |
mm |
1595/2010 |
|
|
Min.Aisle width for pallets 800X1200 |
mm |
2230/2625 |
|
|
Min.Aisle width for pallets 1000X1200 |
mm |
2260/2650 |
|
|
Min.ground clearance |
mm |
30 |
|
|
Performance |
|||
|
Travel speed,laden/unladen |
km/h |
6/6 |
|
|
Lift speed,laden/unladen |
mm/s |
130/180 |
|
|
Lowering_speed,laden/unladen |
mm/s |
100/200 |
|
|
Gradeability,laden/unladen |
% |
6/8 |
|
|
Electrical configuration |
|||
|
Drive motor/Lift motor/Steering motor |
kw |
AC1.5/DC3/BLDC0.3 |
|
|
Brake |
Electromagnetic/Regenerative |
||
|
Battery |
|
Lead-acid battery |
lithium battery(optional) |
|
Battery voltage/capacity |
V/Ah |
24/280 |
24/200 |
|
Controller |
ZAPI |
ZAPI |
|
|
Battery |
kg |
235 |
99 |
|
Service weight (with battery) |
kg |
1213 |
1077 |
