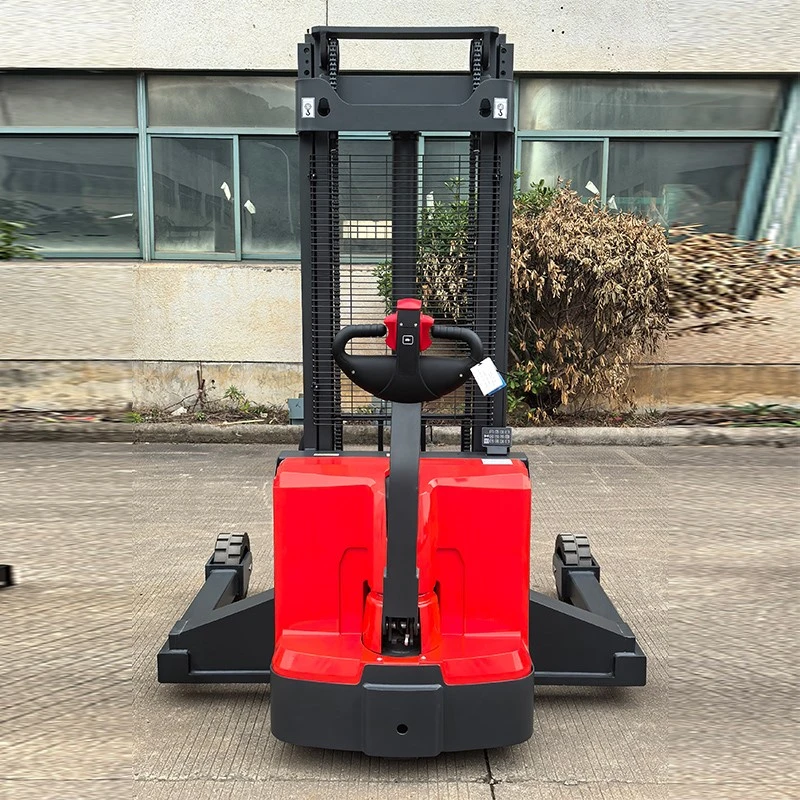

2.0-ton Pedestrian-operated Off-road Stacker
Capacity:2000KG
Net Weight:950KG
Battery Capacity:48V/65AH
Product Introduction
This 2.0-ton pedestrian-operated off-road stacker truck is specifically designed for complex working conditions, outdoor operations, and handling on uneven terrain. It combines robust off-road performance with easy pedestrian operation, offering stable load capacity and durability. Breaking through conventional site limitations, it easily handles various harsh environments, making it the ideal tool for outdoor warehousing, construction sites, factories, and muddy, uneven roads.

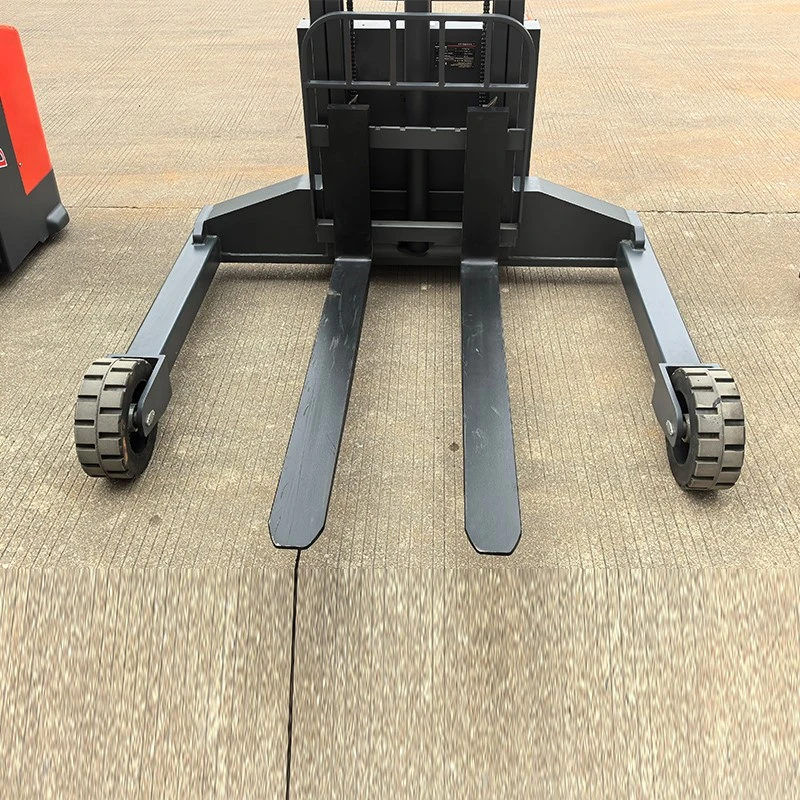

The truck boasts robust performance and maximum practicality. Both drive wheels and load-bearing wheels are equipped with thickened rubber off-road wheels. The material is flexible, thick, wear-resistant, slip-resistant, and tear-resistant, providing far superior grip compared to ordinary rollers. It traverses uneven roads, muddy terrain, slopes, and other complex working conditions with ease, offering excellent passability and maximum durability, resisting wear and damage even during long-term outdoor operation. Equipped with adjustable forks, the outer width can be flexibly adjusted according to the size of the goods, accommodating different pallet and product sizes, making it versatile and adaptable to a wider range of scenarios.
The machine body uses a high-strength metal shell, making it sturdy and impact-resistant, resistant to daily bumps and friction, and resistant to deformation and damage during long-term high-intensity operation, resulting in a longer service life. The user-friendly design features a high-definition LCD screen and key switch, providing clear information on equipment parameters. Start-up and shutdown are safe and controllable, effectively preventing accidental operation and making daily use more worry-free.
Comprehensive safety protection is ensured. Standard features include an emergency stop switch and an emergency reverse safety device, allowing for rapid power cut-off and shutdown in emergencies, effectively preventing operator injuries from crushing. The walk-through design allows for flexible operation without bending over, enabling smooth operation even in confined spaces. It is easy to learn and requires no complex training. The machine balances off-road performance, load-bearing capacity, and safety. Its 2.0-ton rated load capacity meets heavy-duty handling needs, making it suitable for diverse and complex working conditions, offering high efficiency and reliability..
|
Features |
||
|
Model |

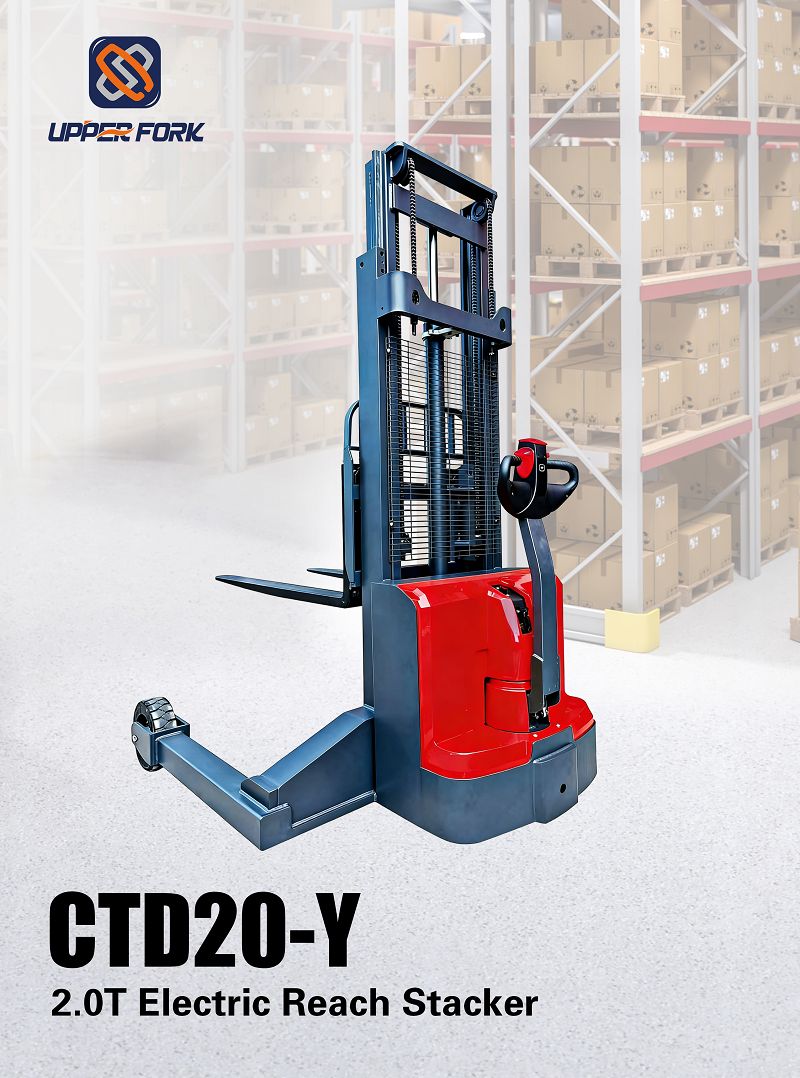

CTD20-Y |
|
|
Operating type |
Walking style |
|
|
Load capacity |
kg |
2000 |
|
Load center |
mm |
500 |
|
Wheel base |
mm |
1320 |
|
Wheels |
||
|
Wheels type |
Rubber |
|
|
Wheel quantity |
1/2 |
|
|
Driving wheel size |
mm |
ɸ300×110 |
|
Balance wheel size |
mm |
ɸ260×100 |
|
Dimensions |
||
|
Standard lift height |
mm |
1600 |
|
Max extend height |
mm |
2358 |
|
Mast lowered height |
mm |
2030 |
|
Min.fork lowered height |
mm |
40 |
|
Outside width between forks |
mm |
204-654 |
|
Inside width between forks |
mm |
124-574 |
|
Fork size(length/width/thickness) |
mm |
40x120x1070 |
|
Overall length |
mm |
1760 |
|
Overall width |
mm |
1615 |
|
Min. Turning radius |
mm |
1480 |
|
Min.Aisle width for pallets 800X1200 |
mm |
2040 |
|
Min.Aisle width for pallets 1000X1200 |
mm |
1840 |
|
Performance |
||
|
Travel speed,laden/unladen |
km/h |
3.6/3.6 |
|
Lift speed,laden/unladen |
mm/s |
100/100 |
|
Lowering speed,laden/unladen |
mm/s |
120/120 |
|
Gradeability,laden/unladen |
% |
6/8 |
|
Electrical configuration |
||
|
Drive motor/Lift motor |
kw |
1.5/3.0 |
|
Controller |
Great power |
|
|
Brake |
|
Electromagnetic |
|
Battery voltage/capacity |
V/Ah |
48/65 |
|
Charger specification |
V/A |
48/10 |
|
Weight |
||
|
Battery |
kg |
75 |
|
Service weight (with battery) |
kg |
950 |
|
Other |
||
|
Steering type |
Mechanical steering |
|
