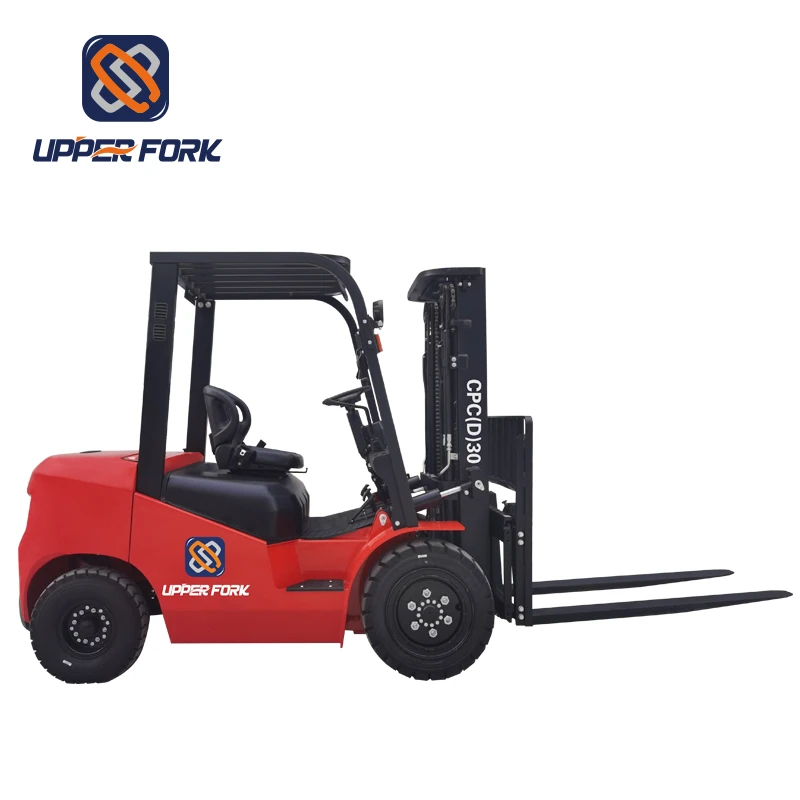

3T Japan Engine Forklift
Lifting Capacity: 3000KG
Total Weight:4150KG
Engine: C240 ISUZU, Japan
Product Introduction



Powerful Forklift with ISUZU Engine for Agricultural Applications: Japan C240 ISUZU Engine Forklift
In agricultural settings, where heavy lifting, long hours, and tough conditions are part of the daily routine, having a reliable and powerful forklift is essential. The Japan C240 ISUZU engine forklift is an excellent solution for agricultural tasks, offering unmatched performance and durability. Powered by the renowned ISUZU C240 engine, this forklift is designed to handle the demands of farms and agricultural operations, ensuring smooth material handling and enhancing productivity with minimal downtime.
The Japan C240 ISUZU engine forklift stands out due to its high-performance capabilities. The ISUZU C240 engine is well-regarded for its superior power and torque, allowing the forklift to lift and move heavy agricultural materials with ease. Whether it's transporting feed, stacking crates, or lifting large bags of fertilizer, this forklift can handle it all without compromising on performance. Its strong lifting capacity makes it the ideal choice for agricultural applications, ensuring that workers can move large quantities of goods efficiently and safely.
One of the key benefits of the Japan C240 ISUZU engine forklift is its low maintenance requirements. The ISUZU C240 engine is built for durability, designed to withstand the demanding environments of agricultural operations. It requires less frequent servicing, reducing maintenance costs and downtime. This is a significant advantage for farms and agricultural businesses where uptime is critical. With the Japan C240 ISUZU engine forklift, businesses can focus on their operations without worrying about the forklift breaking down or needing constant repairs, ensuring a smoother workflow and better productivity.
Additionally, the Japan C240 ISUZU engine forklift is engineered to operate quietly, making it perfect for farm environments. Agricultural work often involves a lot of movement and activity, and the quiet operation of this forklift ensures that it doesn't disrupt the environment. The reduced noise level helps create a more comfortable work environment for operators, reducing fatigue and improving overall safety. This quiet performance is especially important in settings like farms, where noise can be a concern in both day-to-day tasks and during early morning or late-night operations.
Another notable feature of the Japan C240 ISUZU engine forklift is its fuel efficiency. Despite its powerful performance, the ISUZU C240 engine is designed to consume less fuel, making it an environmentally friendly and cost-effective solution for agricultural businesses. Its fuel efficiency helps businesses reduce their operational costs, ensuring that they can keep their overheads low while maintaining high performance.
The versatility of the Japan C240 ISUZU engine forklift is also worth highlighting. This forklift can easily navigate rough, uneven terrain, which is common in agricultural environments. Whether it's moving materials across a farm, unloading goods from delivery trucks, or transporting equipment to different parts of the property, this forklift excels in various applications. Its robust design and reliable engine make it an indispensable tool for farmers and agricultural operators who need a dependable vehicle for material handling.
In conclusion, the Japan C240 ISUZU engine forklift is the perfect choice for agricultural applications. With its powerful lifting capacity, low maintenance needs, quiet operation, and fuel efficiency, it provides agricultural businesses with a reliable and cost-effective solution for material handling. The ISUZU C240 engine ensures consistent performance, even in demanding conditions, while its ability to operate quietly and efficiently makes it an ideal asset for any farm or agricultural operation. By choosing the Japan C240 ISUZU engine forklift, businesses can improve productivity, reduce downtime, and save on long-term operational costs.
|
General |
||
|
Manufacturer |
SHANGCHA |
|
|
Model |
CPC(D)30-ISUZU |
|
|
Power Type |
ENGINE |
|
|
Rated Load Capacity |
kg |
3000 |
|
Load Centre |
mm |
500 |
|
Characteristic & Dimension |
||
|
Rated Lift Height |
mm |
3000 |
|
Free Lift Height |
mm |
140 |
|
Mast Tilt Angle (F/R, a°/β°) |
° |
6°/10° |
|
Travel Speed (Full Load/No Load) |
km/h |
18/18.5 |
|
Lifting Speed (Full Load/No Load) |
mm/s |
420/480 |
|
Max.Gradeability(No Load/Full Load) |
% |
20/20 |
|
Turning Radius |
mm |
2480 |
|
Total weight |
kg |
4150 |
|
Wheelbase |
mm |
1760 |
|
Fork Size (LxWxT) |
mm |
1070×125×45 |
|
Fork Overhang |
mm |
475 |
|
Rear Overhang |
mm |
515 |
|
Length to Face of Fork (Without Fork) |
mm |
2750 |
|
Overall Width |
mm |
1220 |
|
Mast Lowered Height |
mm |
2070 |
|
Overhead Guard Height |
mm |
2170 |
|
Chassis |
||
|
Tyre (Front x 2) |
28×9-15-14PR |
|
|
Tyre (Rear x 2) |
6.50-10-10PR |
|
|
Power &Transmission |
||
|
Battery |
V/Ah |
12/90 |
|
Engine Model |
C240NKFC-01 |
|
|
Engine Manufacturer |
ISUZU |
|
|
Rated Output /r.p.m. |
kw |
35.4/2500 |
|
Rated Torque /r.p.m. |
N·m |
139/1800 |
|
No.of Cylinder |
4 |
|
|
Bore x Stroke |
mm |
86x102 |
|
Displacement |
cc |
2369 |
|
Fuel Tank Capacity |
L |
50 |
|
Transmission Type |
HYDRAULIC |
|
|
Transmission Stage (FWD/RVS) |
1/1 |
|
|
Operating Pressure (For Attachments) |
Mpa |
17.5 |
|
MAST SPECIFICATIONS & RATED CAPACITIES |
|||||||||||||||
|
|
|
|
|
Overall Height (mm) |
Free Lift (mm) |
Tilt Angle (Single) |
Tilt Angle(Double) |
Total Weight |
|||||||
|
Lowered |
Extended |
Without Backrest |
With Bracket |
||||||||||||
|
Without Backrest |
With Backrest |
||||||||||||||
|
30 |
30 |
35 |
35 |
3.0t/3.5t |
3.0t/3.5t |
30 |
35 |
||||||||
|
Wide View Mast |
M270 |
2700 |
3000 |
3500 |
1920 |
3295 |
3770 |
145 |
150 |
6-12 |
4436 |
4751 |
|||
|
M300 |
3000 |
3000 |
3500 |
2070 |
3595 |
4070 |
145 |
150 |
6-12 |
4460 |
4775 |
||||
|
M330 |
3300 |
3000 |
3500 |
2220 |
3895 |
4370 |
145 |
150 |
6-12 |
4485 |
4800 |
||||
|
M350 |
3500 |
3000 |
3500 |
2320 |
4095 |
4570 |
145 |
150 |
6-12 |
4500 |
4825 |
||||
|
M370 |
3700 |
3000 |
3400 |
2420 |
4295 |
4770 |
145 |
150 |
6-6 |
4515 |
4840 |
||||
|
M400 |
4000 |
2950 |
3250 |
2620 |
4595 |
5070 |
145 |
150 |
6-6 |
*6-12 |
4540 |
4865 |
|||
|
M430 |
4300 |
2800 |
3100 |
2770 |
4895 |
5370 |
145 |
150 |
6-6 |
*6-12 |
4565 |
4890 |
|||
|
M450 |
4500 |
2600 |
*2900 |
2900 |
*3000 |
2870 |
5095 |
5570 |
145 |
150 |
6-6 |
*6-12 |
4580 |
4905 |
|
|
M470 |
4700 |
2500 |
2800 |
2800 |
2900 |
2970 |
5295 |
5770 |
145 |
150 |
6-6 |
*6-12 |
4595 |
4920 |
|
|
M500 |
5000 |
2200 |
*2550 |
2400 |
*2800 |
3170 |
5595 |
6070 |
145 |
150 |
6-6 |
*6-6 |
4630 |
4955 |
|
|
M550 |
5500 |
2000 |
*2400 |
2200 |
*2600 |
3420 |
6095 |
6570 |
145 |
150 |
3-6 |
*3-6 |
4680 |
5005 |
|
|
M600 |
6000 |
1500 |
*2000 |
1600 |
*2400 |
3670 |
6595 |
7070 |
145 |
150 |
3-6 |
*3-6 |
4720 |
5045 |
|
|
|
FM270 |
2700 |
3000 |
3500 |
1920 |
3240 |
3715 |
1232 |
757 |
6-12 |
4515 |
4840 |
|||
|
FM300 |
3000 |
3000 |
3500 |
2070 |
3590 |
4065 |
1382 |
907 |
6-12 |
4540 |
4865 |
||||
|
FM330 |
3300 |
3000 |
3500 |
2220 |
3940 |
4415 |
1532 |
1057 |
6-12 |
4565 |
4890 |
||||
|
FM350 |
3500 |
3000 |
3500 |
2320 |
4090 |
4565 |
1632 |
1157 |
6-12 |
4580 |
4905 |
||||
|
FM370 |
3700 |
3000 |
3500 |
2420 |
4240 |
4715 |
1732 |
1257 |
6-6 |
4595 |
4920 |
||||
|
FM400 |
4000 |
3000 |
3250 |
*3500 |
2670 |
4590 |
5065 |
1982 |
1507 |
6-6 |
*6-12 |
4620 |
4945 |
||
|
3-Stage Full |
TFM400 |
4000 |
3000 |
*3000 |
3000 |
*3500 |
1960 |
4700 |
5175 |
1272 |
797 |
6-6 |
*6-6 |
4670 |
4995 |
|
TFM430 |
4300 |
2800 |
*2900 |
3000 |
*3350 |
2060 |
5000 |
5475 |
1372 |
897 |
6-6 |
*6-6 |
4700 |
5025 |
|
|
TFM450 |
4500 |
2600 |
*2800 |
2800 |
*3200 |
2110 |
5200 |
5675 |
1422 |
947 |
6-6 |
*6-6 |
4720 |
5045 |
|
|
TFM470 |
4700 |
2400 |
*2700 |
2500 |
*3000 |
2160 |
5400 |
5875 |
1472 |
997 |
6-6 |
*6-6 |
4740 |
5065 |
|
|
TFM500 |
5000 |
2100 |
*2400 |
2300 |
*2800 |
2260 |
5700 |
6175 |
1572 |
1097 |
6-6 |
*6-6 |
4750 |
5075 |
|
|
TFM550 |
5500 |
1650 |
*2250 |
1800 |
*2550 |
2460 |
6200 |
6675 |
1772 |
1297 |
3-6 |
*3-6 |
4800 |
5125 |
|
|
TFM600 |
6000 |
1200 |
*2100 |
1300 |
*2300 |
2660 |
6700 |
7175 |
1972 |
1497 |
3-6 |
*3-6 |
4870 |
5195 |
|
|
TFM650 |
6500 |
950 |
*1700 |
1050 |
*1800 |
2910 |
7200 |
7675 |
2200 |
1747 |
3-6 |
*3-6 |
5020 |
5345 |
|
|
TFM700 |
7000 |
650 |
*1400 |
750 |
*1500 |
3110 |
7700 |
8175 |
2300 |
1947 |
3-6 |
*3-6 |
5070 |
5395 |
|
|
1. With Separated Side shifter , load capacity subtract 200Kg,With Integrated side shifter , load capacity subtract 50Kg. |
|||||||||||||||
|
2. * (Asterisk ) is for double front wheels model. |
|||||||||||||||
