3.5T Japan Engine Forklift
Lifting Capacity: 3500KG
Total Weight:4400KG
Engine: C240 ISUZU, Japan
Product Introduction



Durable Forklift with ISUZU Engine for Logistics and Warehousing: ISUZU Diesel Forklift
In the fast-paced and demanding world of logistics and warehousing, forklifts play a crucial role in ensuring smooth material handling, efficient workflows, and overall productivity. The ISUZU diesel forklift, powered by the renowned ISUZU C240 engine, offers an exceptional solution for these environments. This forklift combines durability, high torque, and low maintenance features, making it a reliable and cost-effective choice for logistics and warehousing applications.

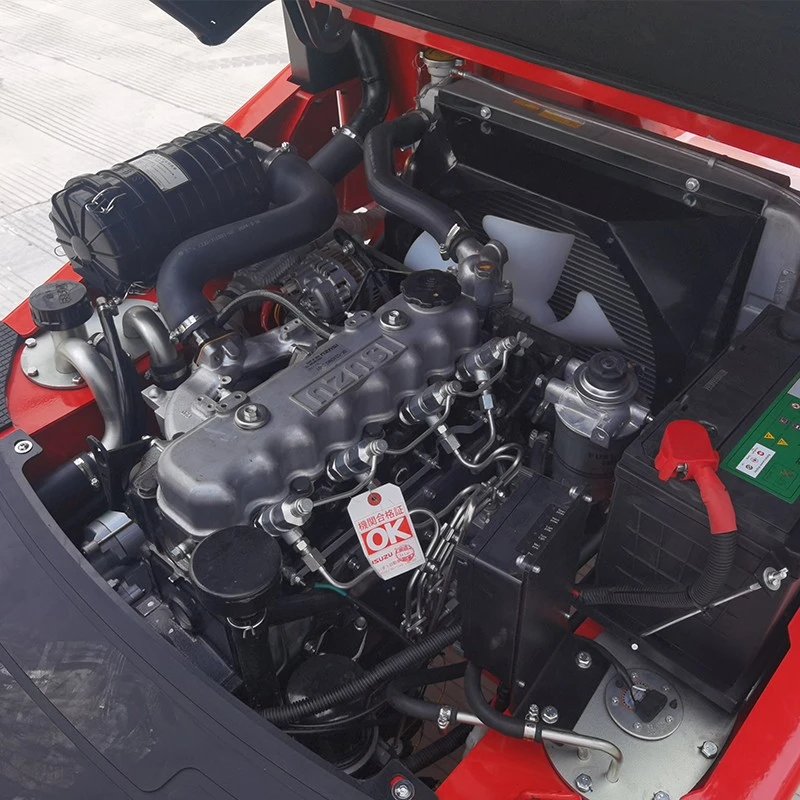

The ISUZU diesel forklift is equipped with the ISUZU C240 engine, a powerful and reliable engine known for its high torque and fuel efficiency. This engine delivers impressive lifting capacity and exceptional performance in handling heavy loads, making it perfect for logistics and warehousing environments where material handling can be a strenuous and continuous task. Whether moving large pallets, stacking goods, or loading/unloading trucks, the ISUZU diesel forklift can handle a wide variety of tasks with ease, ensuring that businesses can maintain productivity without interruptions.
One of the major advantages of the ISUZU diesel forklift is its durability. Built to withstand the demands of logistics and warehousing, the ISUZU engine is designed to perform under heavy workloads without sacrificing reliability. The ISUZU diesel forklift is engineered to endure long hours of operation, making it ideal for environments that require continuous use. Its sturdy construction ensures that the forklift remains operational under even the most demanding conditions, providing businesses with a dependable solution for material handling.
In addition to its high torque and durability, the ISUZU diesel forklift also features low-noise operation, a key consideration for businesses working in noisy environments such as warehouses and distribution centers. The ISUZU C240 engine is designed to operate quietly, reducing noise pollution and creating a safer, more comfortable working environment for operators. This feature is especially valuable in busy logistics operations where multiple forklifts are in use at the same time. The low noise level of the ISUZU diesel forklift allows workers to communicate more easily and helps reduce operator fatigue, contributing to a more efficient work environment.
Another significant benefit of the ISUZU diesel forklift is its maintenance-free design. The ISUZU C240 engine is built for longevity and ease of use, minimizing the need for frequent repairs or servicing. This feature is especially advantageous in logistics and warehousing environments, where forklifts are essential for day-to-day operations and downtime can lead to disruptions in workflow. The ISUZU diesel forklift requires less maintenance, reducing service costs and increasing uptime, which directly contributes to improved operational efficiency and cost savings for businesses.
Fuel efficiency is another key benefit of the ISUZU diesel forklift. Despite its powerful performance, the ISUZU C240 engine is designed to consume less fuel, making it an environmentally friendly and economical choice for businesses. Lower fuel consumption translates into reduced operating costs, which is especially important for businesses that rely on forklifts for heavy-duty tasks and long shifts. The fuel efficiency of the ISUZU diesel forklift helps companies keep their overhead costs in check while maximizing performance and productivity.
In addition to its fuel efficiency, the ISUZU diesel forklift offers exceptional versatility in various logistics and warehousing applications. It can easily navigate tight spaces and handle heavy loads with ease, making it perfect for both indoor and outdoor tasks. Whether in a warehouse full of shelves or on a loading dock where space is limited, the ISUZU diesel forklift excels at maneuvering in various settings, ensuring that materials are moved efficiently and safely.
In conclusion, the ISUZU diesel forklift is the ideal solution for logistics and warehousing applications that demand high performance, durability, and low maintenance. Powered by the ISUZU C240 engine, this forklift provides impressive lifting power, reduced noise, and lower fuel consumption, making it a cost-effective and reliable tool for material handling. Its low-maintenance design ensures that businesses can minimize downtime and keep operations running smoothly, while its durable construction and quiet operation enhance productivity and safety. The ISUZU diesel forklift is an investment that businesses in logistics and warehousing can rely on for years to come, providing a robust solution that meets the demands of modern operations.
|
General |
||
|
Manufacturer |
SHANGCHA |
|
|
Model |
CPC(D)35-ISUZU |
|
|
Power Type |
ENGINE |
|
|
Rated Load Capacity |
kg |
3500 |
|
Load Centre |
mm |
500 |
|
Characteristic & Dimension |
||
|
Rated Lift Height |
mm |
3000 |
|
Free Lift Height |
mm |
145 |
|
Mast Tilt Angle (F/R, a°/β°) |
° |
6°/10° |
|
Travel Speed (Full Load/No Load) |
km/h |
18/18.5 |
|
Lifting Speed (Full Load/No Load) |
mm/s |
395/480 |
|
Max.Gradeability(No Load/Full Load) |
% |
20/20 |
|
Turning Radius |
mm |
2520 |
|
Total weight |
kg |
4400 |
|
Wheelbase |
mm |
1760 |
|
Fork Size (LxWxT) |
mm |
1070×125×50 |
|
Fork Overhang |
mm |
480 |
|
Rear Overhang |
mm |
560 |
|
Length to Face of Fork (Without Fork) |
mm |
2800 |
|
Overall Width |
mm |
1220 |
|
Mast Lowered Height |
mm |
2070 |
|
Overhead Guard Height |
mm |
2170 |
|
Chassis |
||
|
Tyre (Front x 2) |
28×9-15-14PR |
|
|
Tyre (Rear x 2) |
6.50-10-10PR |
|
|
Power &Transmission |
||
|
Battery |
V/Ah |
12/90 |
|
Engine Model |
C240NKFC-01 |
|
|
Engine Manufacturer |
ISUZU |
|
|
Rated Output /r.p.m. |
kw |
35.4/2500 |
|
Rated Torque /r.p.m. |
N·m |
139/1800 |
|
No.of Cylinder |
4 |
|
|
Bore x Stroke |
mm |
86x102 |
|
Displacement |
cc |
2369 |
|
Fuel Tank Capacity |
L |
50 |
|
Transmission Type |
HYDRAULIC |
|
|
Transmission Stage (FWD/RVS) |
1/1 |
|
|
Operating Pressure (For Attachments) |
Mpa |
17.5 |
|
MAST SPECIFICATIONS & RATED CAPACITIES |
|||||||||||||||
|
|
|
|
|
Overall Height (mm) |
Free Lift (mm) |
Tilt Angle (Single) |
Tilt Angle(Double) |
Total Weight |
|||||||
|
Lowered |
Extended |
Without Backrest |
With Bracket |
||||||||||||
|
Without Backrest |
With Backrest |
||||||||||||||
|
30 |
30 |
35 |
35 |
3.0t/3.5t |
3.0t/3.5t |
30 |
35 |
||||||||
|
Wide View Mast |
M270 |
2700 |
3000 |
3500 |
1920 |
3295 |
3770 |
145 |
150 |
6-12 |
4436 |
4751 |
|||
|
M300 |
3000 |
3000 |
3500 |
2070 |
3595 |
4070 |
145 |
150 |
6-12 |
4460 |
4775 |
||||
|
M330 |
3300 |
3000 |
3500 |
2220 |
3895 |
4370 |
145 |
150 |
6-12 |
4485 |
4800 |
||||
|
M350 |
3500 |
3000 |
3500 |
2320 |
4095 |
4570 |
145 |
150 |
6-12 |
4500 |
4825 |
||||
|
M370 |
3700 |
3000 |
3400 |
2420 |
4295 |
4770 |
145 |
150 |
6-6 |
4515 |
4840 |
||||
|
M400 |
4000 |
2950 |
3250 |
2620 |
4595 |
5070 |
145 |
150 |
6-6 |
*6-12 |
4540 |
4865 |
|||
|
M430 |
4300 |
2800 |
3100 |
2770 |
4895 |
5370 |
145 |
150 |
6-6 |
*6-12 |
4565 |
4890 |
|||
|
M450 |
4500 |
2600 |
*2900 |
2900 |
*3000 |
2870 |
5095 |
5570 |
145 |
150 |
6-6 |
*6-12 |
4580 |
4905 |
|
|
M470 |
4700 |
2500 |
2800 |
2800 |
2900 |
2970 |
5295 |
5770 |
145 |
150 |
6-6 |
*6-12 |
4595 |
4920 |
|
|
M500 |
5000 |
2200 |
*2550 |
2400 |
*2800 |
3170 |
5595 |
6070 |
145 |
150 |
6-6 |
*6-6 |
4630 |
4955 |
|
|
M550 |
5500 |
2000 |
*2400 |
2200 |
*2600 |
3420 |
6095 |
6570 |
145 |
150 |
3-6 |
*3-6 |
4680 |
5005 |
|
|
M600 |
6000 |
1500 |
*2000 |
1600 |
*2400 |
3670 |
6595 |
7070 |
145 |
150 |
3-6 |
*3-6 |
4720 |
5045 |
|
|
|
FM270 |
2700 |
3000 |
3500 |
1920 |
3240 |
3715 |
1232 |
757 |
6-12 |
4515 |
4840 |
|||
|
FM300 |
3000 |
3000 |
3500 |
2070 |
3590 |
4065 |
1382 |
907 |
6-12 |
4540 |
4865 |
||||
|
FM330 |
3300 |
3000 |
3500 |
2220 |
3940 |
4415 |
1532 |
1057 |
6-12 |
4565 |
4890 |
||||
|
FM350 |
3500 |
3000 |
3500 |
2320 |
4090 |
4565 |
1632 |
1157 |
6-12 |
4580 |
4905 |
||||
|
FM370 |
3700 |
3000 |
3500 |
2420 |
4240 |
4715 |
1732 |
1257 |
6-6 |
4595 |
4920 |
||||
|
FM400 |
4000 |
3000 |
3250 |
*3500 |
2670 |
4590 |
5065 |
1982 |
1507 |
6-6 |
*6-12 |
4620 |
4945 |
||
|
3-Stage Full |
TFM400 |
4000 |
3000 |
*3000 |
3000 |
*3500 |
1960 |
4700 |
5175 |
1272 |
797 |
6-6 |
*6-6 |
4670 |
4995 |
|
TFM430 |
4300 |
2800 |
*2900 |
3000 |
*3350 |
2060 |
5000 |
5475 |
1372 |
897 |
6-6 |
*6-6 |
4700 |
5025 |
|
|
TFM450 |
4500 |
2600 |
*2800 |
2800 |
*3200 |
2110 |
5200 |
5675 |
1422 |
947 |
6-6 |
*6-6 |
4720 |
5045 |
|
|
TFM470 |
4700 |
2400 |
*2700 |
2500 |
*3000 |
2160 |
5400 |
5875 |
1472 |
997 |
6-6 |
*6-6 |
4740 |
5065 |
|
|
TFM500 |
5000 |
2100 |
*2400 |
2300 |
*2800 |
2260 |
5700 |
6175 |
1572 |
1097 |
6-6 |
*6-6 |
4750 |
5075 |
|
|
TFM550 |
5500 |
1650 |
*2250 |
1800 |
*2550 |
2460 |
6200 |
6675 |
1772 |
1297 |
3-6 |
*3-6 |
4800 |
5125 |
|
|
TFM600 |
6000 |
1200 |
*2100 |
1300 |
*2300 |
2660 |
6700 |
7175 |
1972 |
1497 |
3-6 |
*3-6 |
4870 |
5195 |
|
|
TFM650 |
6500 |
950 |
*1700 |
1050 |
*1800 |
2910 |
7200 |
7675 |
2200 |
1747 |
3-6 |
*3-6 |
5020 |
5345 |
|
|
TFM700 |
7000 |
650 |
*1400 |
750 |
*1500 |
3110 |
7700 |
8175 |
2300 |
1947 |
3-6 |
*3-6 |
5070 |
5395 |
|
|
1. With Separated Side shifter , load capacity subtract 200Kg,With Integrated side shifter , load capacity subtract 50Kg. |
|||||||||||||||
|
2. * (Asterisk ) is for double front wheels model. |
|||||||||||||||
