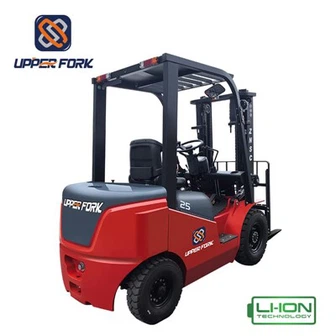

2.5T Solid Lithium Battery Forklift
Lifting Capacity：2500K
Total Weight：3900KG
Lithium Battery：80V/300AH
Product Introduction
UPPERFORK CPCD25T-SJ6 2.5-Ton Solid-State Lithium Forklift
The UPPERFORK CPCD25T-SJ6 is a 2.5-ton solid-state lithium forklift with a rated capacity of 2,500 kg and a 500 mm load center. It is built for medium and heavy material handling in manufacturing workshops and logistics centers.
Solid-state battery
The truck runs on an 80V/300Ah solid-state lithium battery that holds steady power output at full load. A 10 kW travel motor (16 kW peak) and a 16 kW lift motor (20 kW peak) drive travel and lifting, with a SANTROLL controller in MOS/AC control mode.
Performance
Travel speed is 14.5 km/h full load and 15 km/h empty, lift speed is 350 mm/s full load and 480 mm/s empty, and gradeability is 20% full load and 25% empty. The mast lifts to 3,000 mm, with 150 mm of free lift and a 6° forward and 12° back tilt.
Chassis and safety
The truck weighs 3,900 kg with the battery and runs on pneumatic tires, 7.00-12-12PR at the front and 18×7-8-14PR at the rear. The service brake is hydraulic and the parking brake mechanical, and the working pressure is 18.5 MPa. The turning radius is 2,020 mm.
Operation
The zero-emission drive lets the truck work indoors, and the forklift measures 2,310 mm long without forks and 1,170 mm wide. The forks are 1,070 × 120 × 40 mm, and the overhead guard height is 2,180 mm.
For a specification sheet or a quotation, contact UPPERFORK.
|
Manufacturer |
UPPER FORK |
|
|
Product model |
CPCD25T-SJ6 |
|
|
Power mode |
Lithium battery |
|
|
Driving mode |
Drive |
|
|
Rated lifting capacity |
Q(kg) |
2500 |
|
Load center distance |
c(mm) |
500 |
|
Front overhang |
x(mm) |
470 |
|
Wheelbase |
y(mm) |
1430 |
|
Deadweight (including battery) |
kg |
3900 |
|
Tyre type |
Pneumatic tire |
|
|
Front wheel specifications |
7.00-12-12PR |
|
|
Rear wheel specifications |
18×7-8-14PR |
|
|
Front track |
b10(mm) |
980 |
|
Rear track |
b11(mm) |
970 |
|
Mast tilt (front/rear) |
α/β(°) |
6°/12° |
|
Mast static height |
h1(mm) |
2055 |
|
Free lifting height |
h2(mm) |
150 |
|
Standard mast lifting height |
h3(mm) |
3000 |
|
Maximum mast lifting height (with shelf) |
h4(mm) |
4070 |
|
Overhead guard height |
h6(mm) |
2180 |
|
Total length (without fork) |
l2(mm) |
2310 |
|
Total width |
b1(mm) |
1170 |
|
Fork specifications |
l/e/s(mm) |
1070×120×40 |
|
Outer turning radius |
Wa(mm) |
2020 |
|
Operating speed (full load) |
km/h |
14.5 |
|
Operating speed (no load) |
km/h |
15 |
|
Lifting speed (full load) |
mm/s |
350 |
|
Lifting speed (no load) |
mm/s |
480 |
|
Maximum climbing grade (full load) |
% |
20 |
|
Maximum climbing grade (no load) |
% |
25 |
|
Service brake |
Hydraulic |
|
|
Parking brake |
Mechanical |
|
|
Rated power of travel motor (S2-60min) |
kw |
10 |
|
Peak power of travel motor (2min) |
kw |
16 |
|
Rated power of lifting motor (S3-15%) |
kw |
16 |
|
Peak power of lifting motor (2min) |
kw |
20 |
|
Battery voltage/capacity |
V/Ah |
80V/300Ah |
|
Control mode |
MOS/AC |
|
|
Controller manufacturer |
SANTROLL |
|
|
Working pressure |
Mpa |
18.5 |
